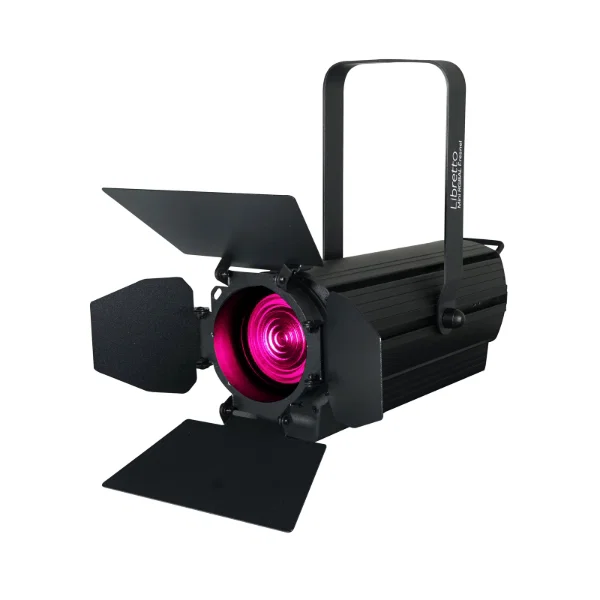

Product overview 1 x 60W five‑colour COB LED (RGBAL) fixture offering tunable white and saturated color mixing with high CRI and flexible beam control. Suitable for stage, studio, event and architectural applications where accurate color, flicker control and compact power are required.
Key features
Light source: 1 × 60W COB LED, five‑colour (RGBAL)
Beam angle: manually adjustable 17°–34°
Output (at 2 m): 17° = 1849 lux; 34° = 749 lux
CRI: 93
Refresh (flicker) rates selectable: 900 Hz, 1000 Hz, 1200 Hz, 1500 Hz, 2500 Hz, 4000 Hz, 5000 Hz, 10 kHz, 15 kHz, 20 kHz
DMX channels selectable: 2 / 3 / 5 / 7 / 9 / 13
Control modes: Auto programs, static colour, manual operation
Dimming: smooth 0–100% dimming
Dimming curves: Linear, square law, inverse square law, S‑curve
Variable strobe with adjustable speed and pattern
User interface: 4‑button menu with OLED display

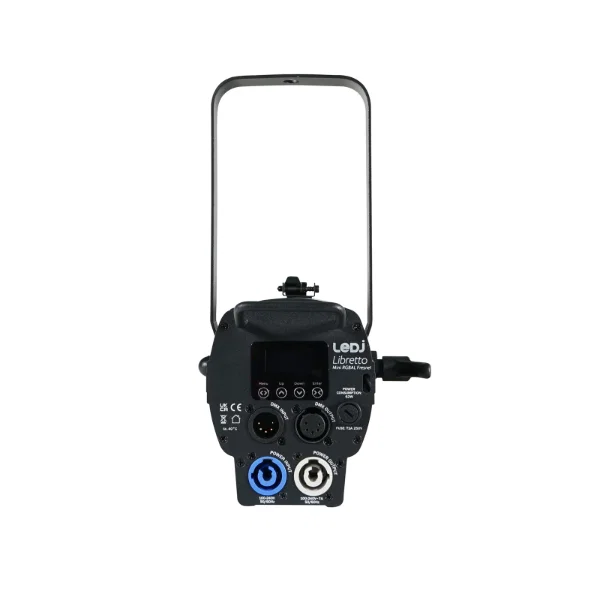

Connectivity: powerCON input/output, 5‑pin XLR DMX input/output
Cooling: fan cooled

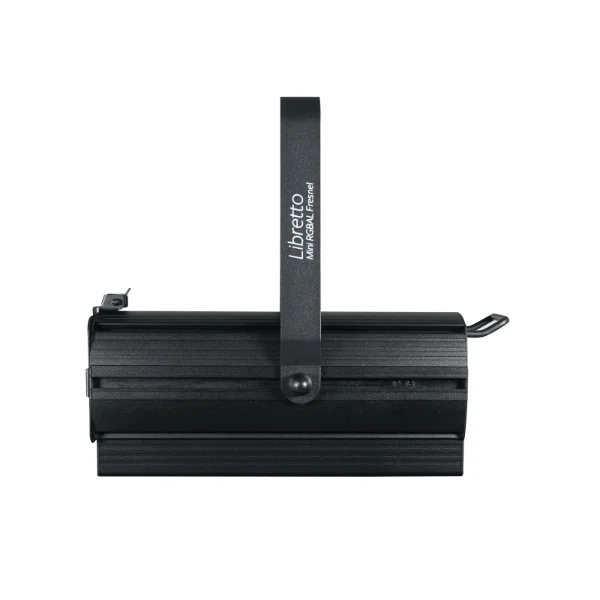

Physical: rear positioning handle for easy aiming

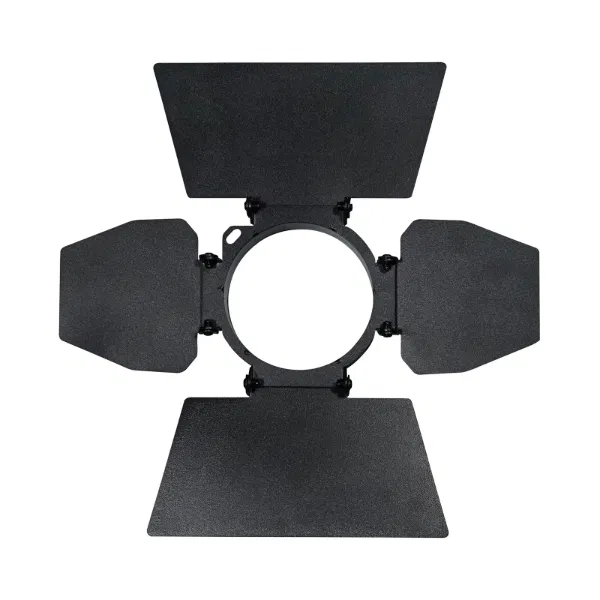

Accessories included: filter frame and barn doors
Operational notes
Selectable refresh rates up to 20 kHz make the fixture suitable for high‑frame‑rate cameras—verify camera settings to eliminate banding.
Manual beam adjustment (17°–34°) allows tight spot to wider wash without changing optics; use barn doors and filter frame for further beam shaping and diffusion.
Multiple DMX channel modes let you trade complexity for access to advanced functions (colour mixing, macros, fine dimming).
Fan cooling improves thermal management but may require placement consideration for quiet environments.
Specifications (summary)
LED: 1 × 60W RGBAL COB
Beam angle: 17°–34° (manual)
Illuminance: 1849 lux @ 2 m (17°); 749 lux @ 2 m (34°)
CRI: 93
Refresh rate: 900 Hz, 1000 Hz, 1200 Hz, 1500 Hz, 2500 Hz, 4000 Hz, 5000 Hz, 10 kHz, 15 kHz, 20 kHz (selectable)
DMX modes: 2/3/5/7/9/13 channels (selectable)
Dimming range: 0–100% (linear, square law, inverse square law, S‑curve)
Controls: Auto, static, manual; variable strobe
Display: OLED with 4‑button navigation
Power connectors: powerCON in/out
DMX connectors: 5‑pin XLR in/out
Cooling: fan
Accessories: filter frame, barn doors
Mounting/handling: rear positioning handle
